SOUND-PROOF AND MOVEABLE DIESEL GENSET

Short Description:

5KW/220V strong power, Being suitable to Family use, Air-cooled diesel single cylinder engine, Fuel-efficient, Low noise, Easy move, Firm and nice configuration and Powerful output.


Product Detail

Product Tags

Mobile diesel generator set is also called mobile power station, its design is unique, high mobility, low center of gravity, braking safety, excellent manufacturing, beautiful appearance, its characteristics are introduced as follows:

1. The trailer frame of mobile diesel generator set is welded by slot beam, with reasonable selection of nodes, high strength and good rigidity;  At the same time equipped with leaf spring suspension structure.

2. The trailer adopts height adjustable latch type traction frame, suitable for all kinds of height tractor; Straight-through axle welded with circular steel tube, compact structure, safe and reliable.

3. The four corners of the frame are equipped with mechanical support devices, which are equipped with inertial braking, parking braking and emergency braking to ensure the safety of the unit under various conditions.  The front end of the frame is provided with a supporting wheel, which has the function of bearing the vertical load of the unit and also has the guiding function.

4. The whole vehicle is equipped with steering and brake indicators, at the same time equipped with taillight standard plug. Mobile diesel generator set series has a variety of structures and functions: hand push, three wheels, four wheels, car power station, trailer power station, mobile low noise power station, mobile container power station, electric engineering vehicle, etc.

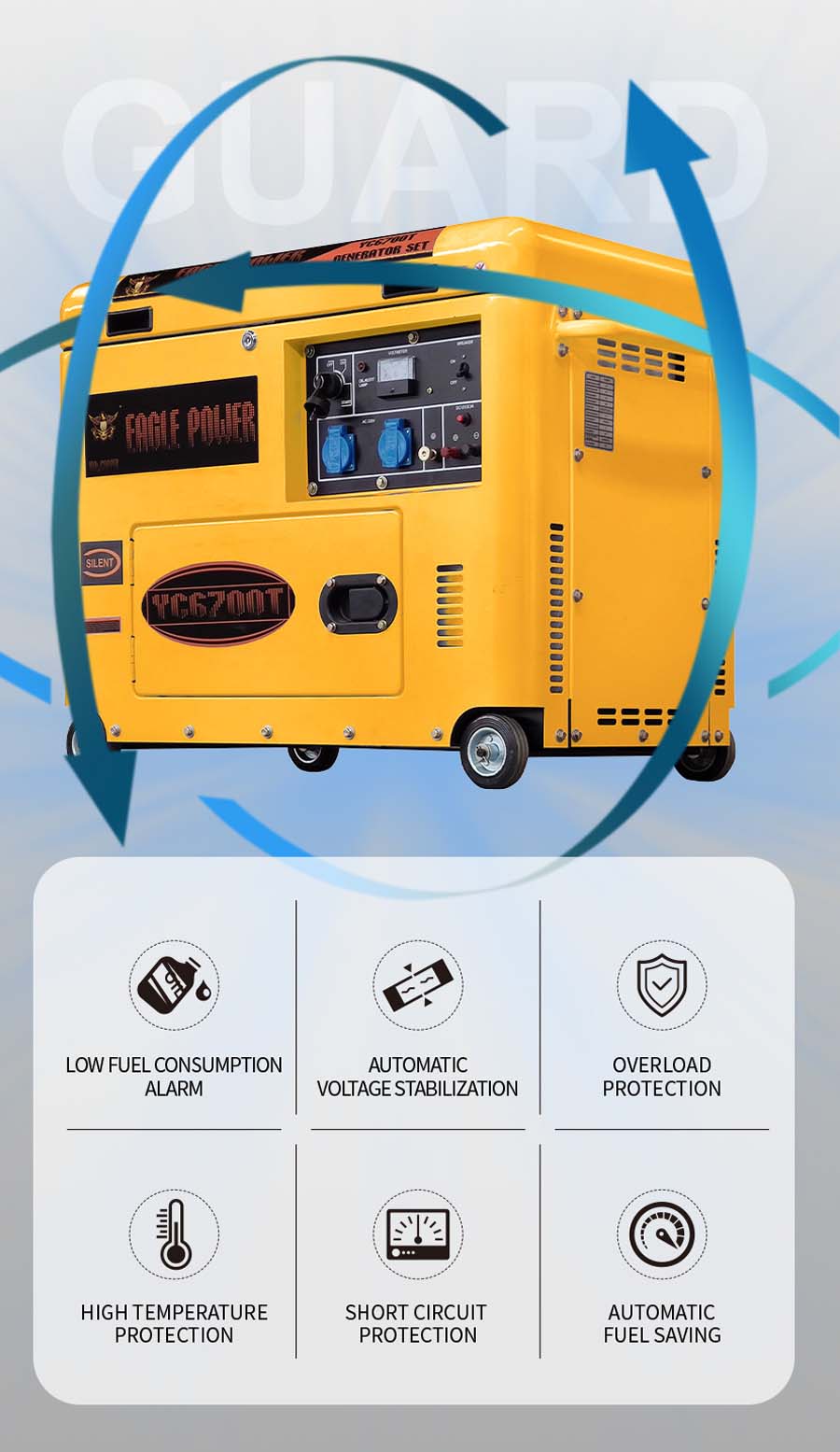

Six steps stereoscopic protection
inside more steps protection system, safe to use, intelligent to generate with free worry

DIESEL CAST IRON WATER PUMP-05

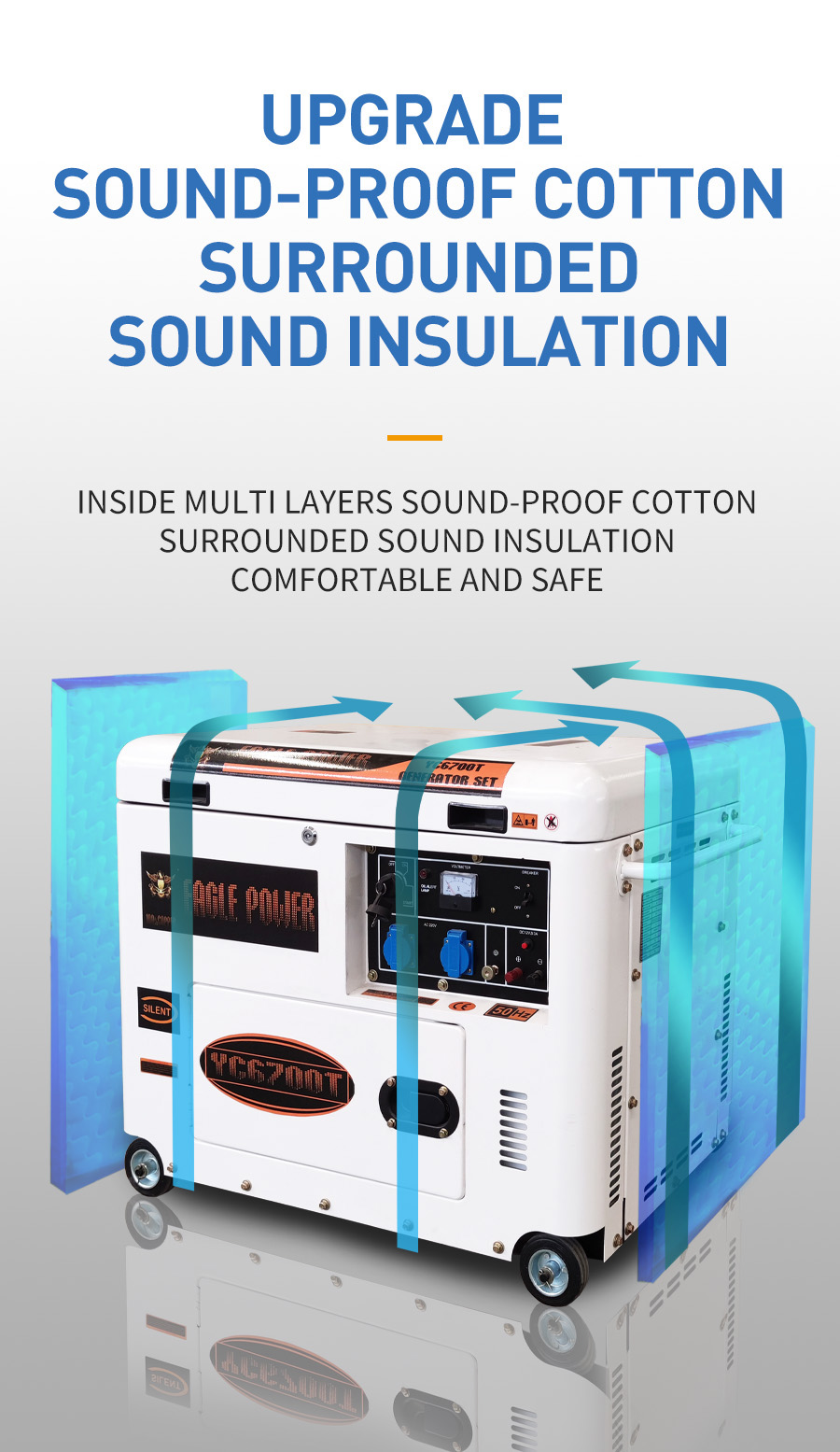

Upgradesound-proof cottonsurroundedsound insulation
Inside multi layers sound-proof cottonsurrounded sound insulationcomfortable and safe

DIESEL CAST IRON WATER PUMP-04

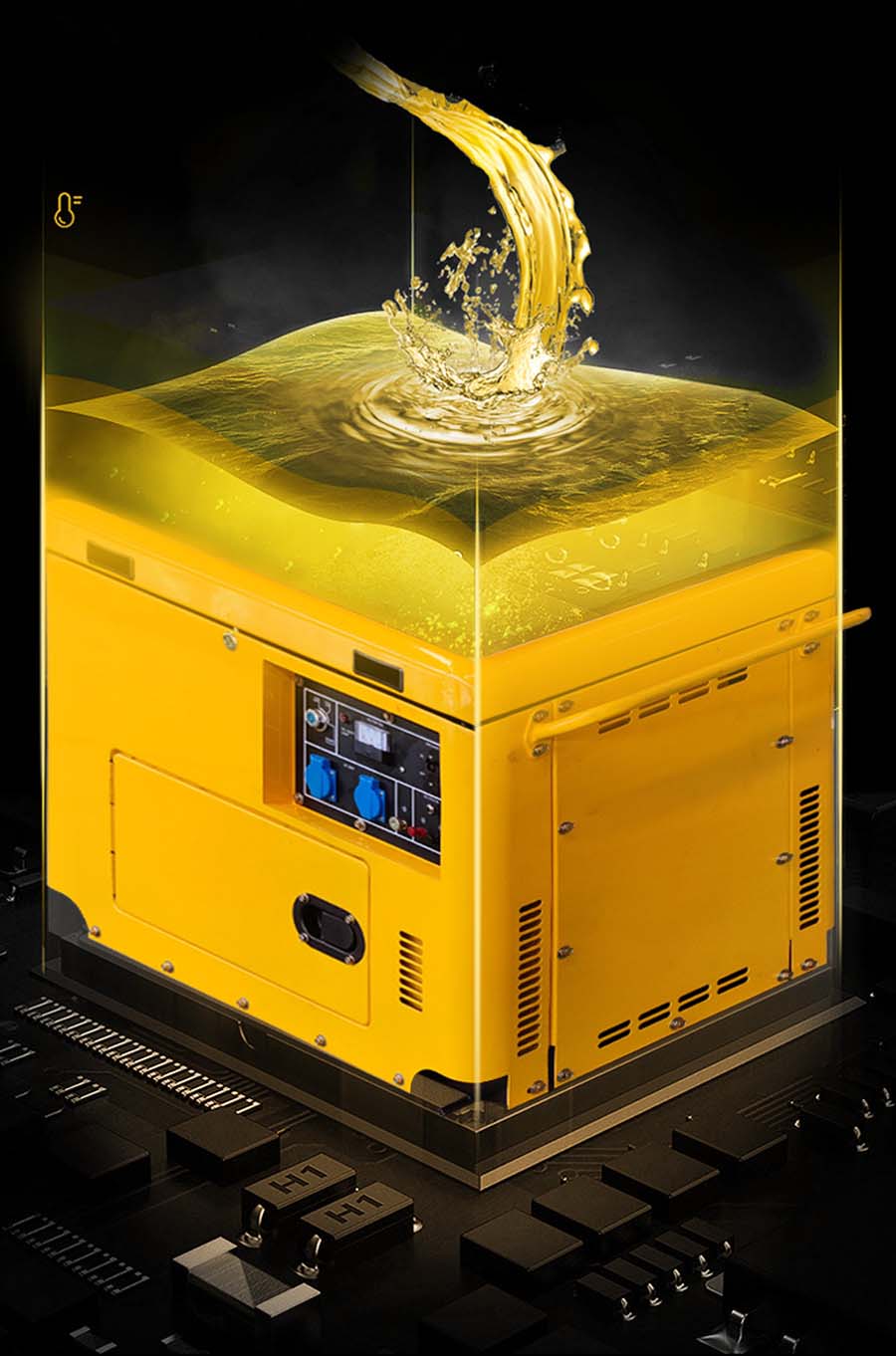

16L bigger fuel tank,large endurance
No need add fuel frequently, large endurance more stable, to make sure your needs at any time

SOUND-PROOF AND MOVEABLE DIESEL GENSET0106

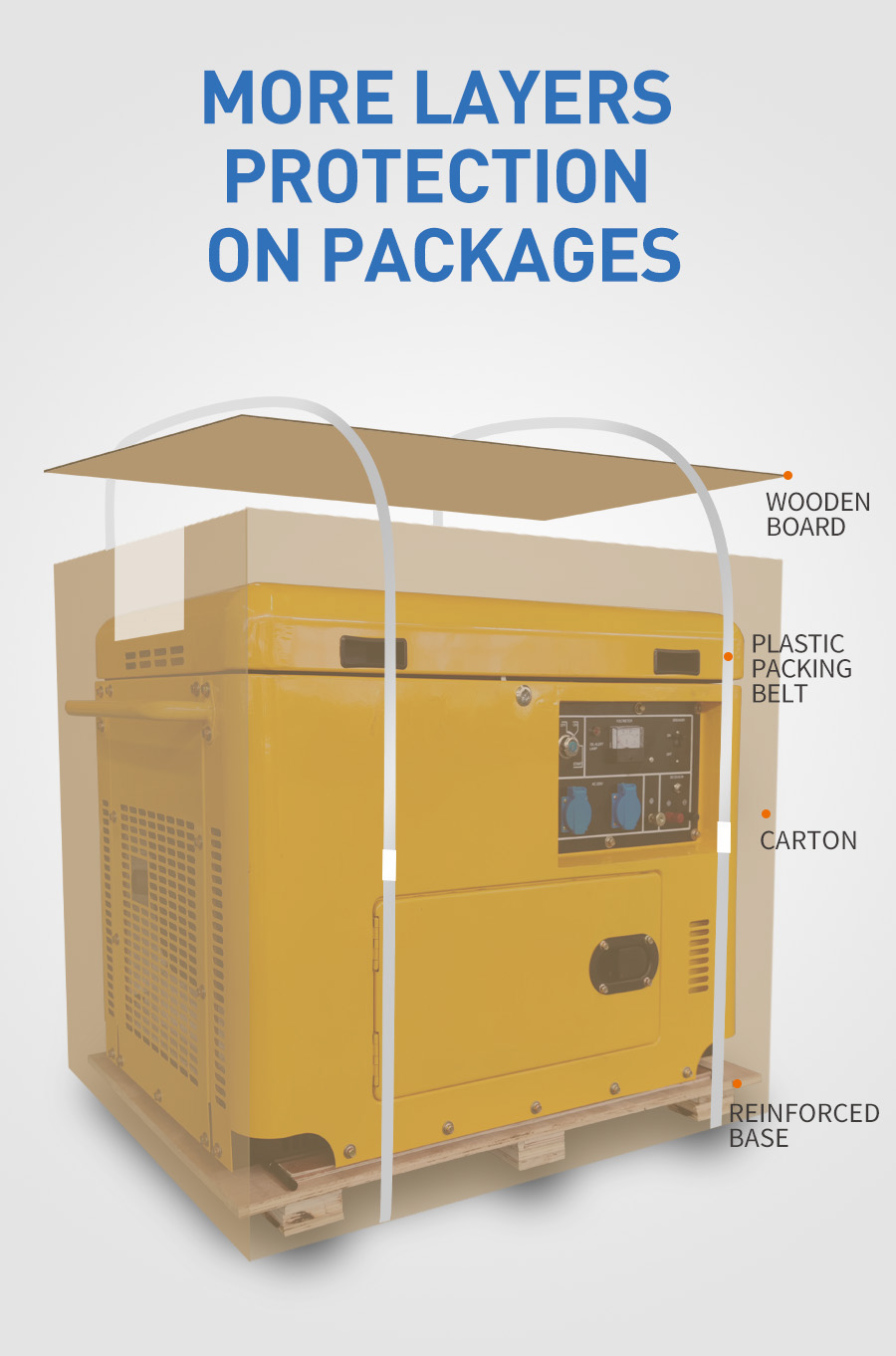

More Layers Protection On Packages
Wooden Board; plastic Packing Belt
Carton; Reinforced Base

SOUND-PROOF AND MOVEABLE DIESEL GENSET0107

How to calculate the output of generator?

SOUND-PROOF AND MOVEABLE DIESEL GENSET0103

Common use electrical appliance
You can load as the rated output of electrical appliances (such as light bulb, tv)
Note: if with led light, pls contact with us(some led waves is different then differenet generator set.)

SOUND-PROOF AND MOVEABLE DIESEL GENSET0104

Electrical applicance with heating
You can load with 1.3 times as rated output of heated applicance(such as induction cooker, kettle, microwave oven, oven etc)

SOUND-PROOF AND MOVEABLE DIESEL GENSET0105

Electrical applicance with perceptual class
You can load with 2.2-2.5 times as rated output of these applicance with perceptual class(such as air-conditioner, pump, refrigerator, ice fry machine, ice cream machine etc)
You can load with 3times on air compressor, deep well pump,crane etc.

Parameters

MODEL

YC6700T/T3

YC7500T/T3

YC8500T/T3

RATED FREQUENCY (hz)

50

60

50

60

50

60

RATED OUTPUT (kw)

4.8

5.0

5.2

5.7

7.0

7.5

MAX.OUTPUT (kw)

5.2

5.5

5.7

6.2

7.5

8.0

RETED VOLTAGE (V)

110/220  120/240  220/240  380/220V  400/230V

MODEL

YC186FAE

YC188FAE

YC192FE

ENGINE TYPE

Single-cylinder, Vertical, 4 stroke, air-cooled diesel engine, direct injection

BORE*STROKE (mm)

86*72

88*75

92*75

DISPLACEMENT (L)

0.418

0.456

0.498

RATED POWER KW (r/min)

5.7

6.3

6.6

7.3

9.0

9.5

LUBE CAPACITY (L)

1.65

1.65

2.2

STARTING SYSTEM

ELECTRICAL START

FUEL COMSUMPTION (g/kw.h)

275.1

281.5

274

279

275

280

ALTERNATOR



PHASE NO.

SINGLE PHASE/THREE PHASE

POWER FACTOR (COSΦ)

1.0/0.8

PANEL TYPE



OUTPUT RECEPTACLE

ANTI-LOOSENING OR EUROPEAN TYPE

DC OUTPUT(V-A)

12V/8.3A

GENSET



FUEL TANK CAPACITY(L)

16

16

16

STRUCTURE TYPE

SUPER SILENT

NOISE(dB/7m)

66

OVERALL DIMENSION: L*W*H(mm)

935*555*760

935*555*760

935*555*760

DRY WEIGHT (kg)

165

170

225
